TYC-SC Series hand held small torque servo screwdrivers

Ultra high precision to achieve the highest torque accuracy in the industry ± 1% to ± 2% (maximum torque) ± 1% to ± 2%）。 Large color display screen real-time display torque speed curvature easy to adjust easy to learn to use. Permanent stora / 18915519422 在线咨询

Product introduction
Product parameters
Recommended products

Product introduction

Ultra high precision to achieve the highest torque accuracy in the industry ± 1% to ± 2% (maximum torque) ± 1% to ± 2%）。

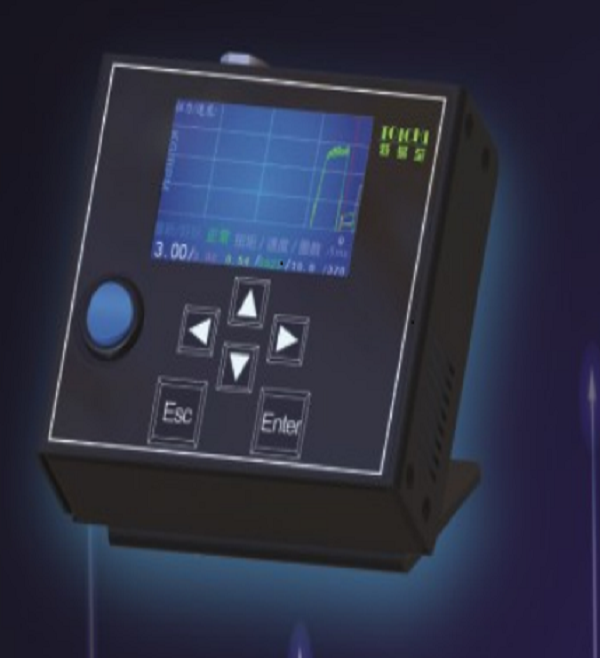

Large color display screen real-time display torque speed curvature easy to adjust easy to learn to use.

Permanent storage of 20W latest records can be inquired according to the date.

Up to 16 groups of programs to achieve a set of screwdrivers to lock different torques.

Standard Modbus RTU protocol can be directly connected to the computer or HMI

Product parameters

基本型号	单位	TYC SC-10	TYC SC-25	TYC SC-50
螺丝尺寸		M 1.0 ~ M2.0	M 2.0 ~ M3.0	M 2.0~M3.0
马达		编码器闭环控制
目标扭力值设定	Kg.cm	0.1~0.8	0.5~2.5	1.2~5.0
最大旋转速度	RPM(min-1)	3000

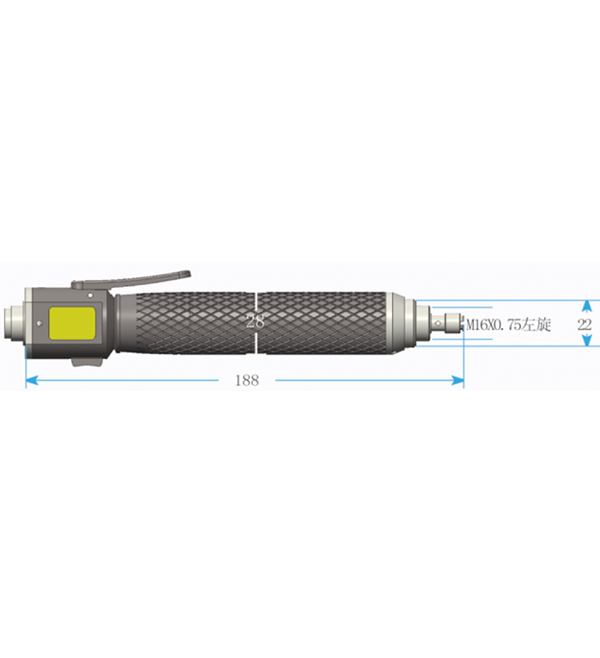

外形尺寸（直径）	mm	28	30	33
外形尺寸（长）	mm	188	206	213
重量	g	约404	约504
旋转方向		CW 顺时针方向	CCW 逆时针方向
程序记忆数			16
锁附记录		20万
扭力精度	Kg.m	最高扭矩的±1%至±2%
通讯方式		RS232 与 RS485各一个
输入信号		制程：4Bits 锁螺丝/松螺丝：2Bits
输出信号		扭力提升：1 Bits
		Busy：1 Bits
		信息：3 Bits
电源		DC24V (5A)	DC24V (7A)
